Kwajalein Atoll
Radar Installations
ZAR - Zeus Acquisition Radar
..
 Photo Credit: Williamson Labs

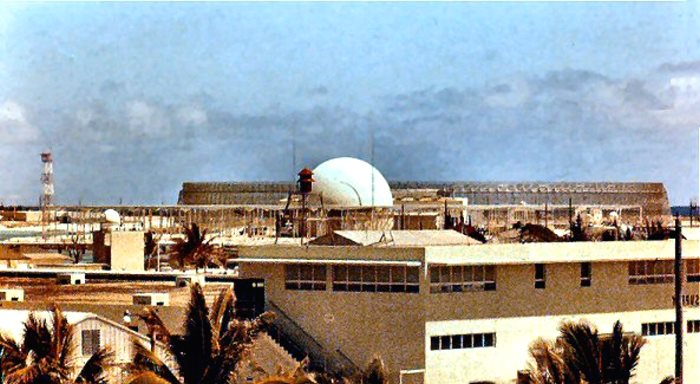

ZAR Receiving Antenna - ZAR Power Plant- -ZAR Transmitting Antenna
..
Photo Credit: Williamson Labs

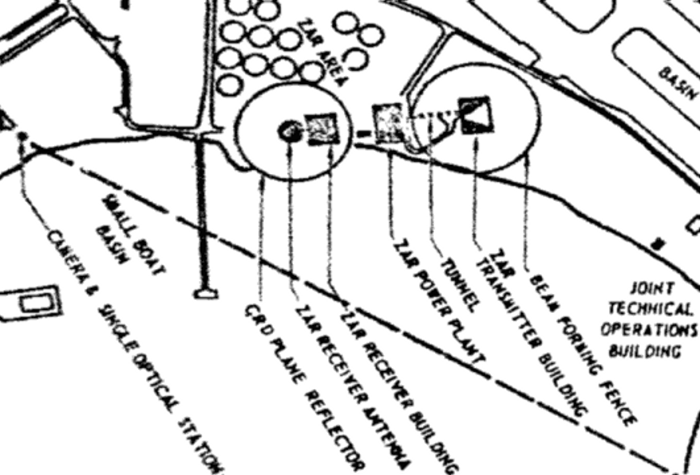

ZAR layout
..
Photo Credit: Williamson Labs
The Zeus Acquisition Radar was so powerful that it used seperate transmitting and receiving antennas. Foreground: 85 foot diameter Receiving antenna. Background: ZAR Transmitting antenna enclosed by 90 foot high stainless steel "Beam Forming Fence." And, in between is the ZAR Power plant.
..

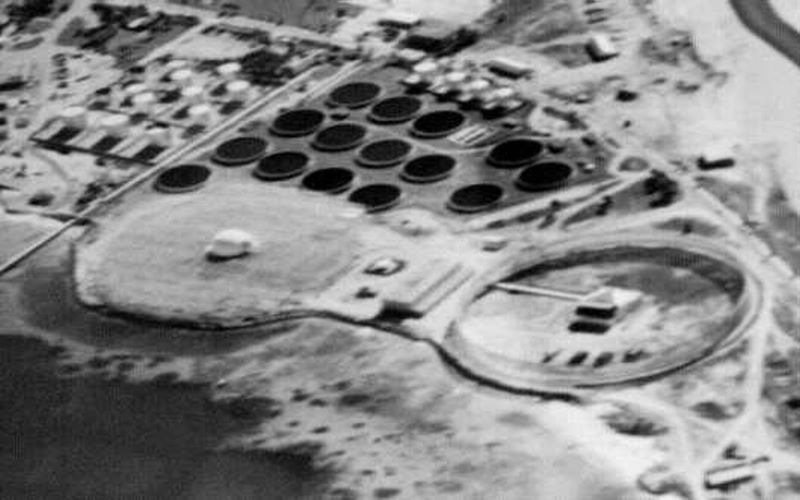

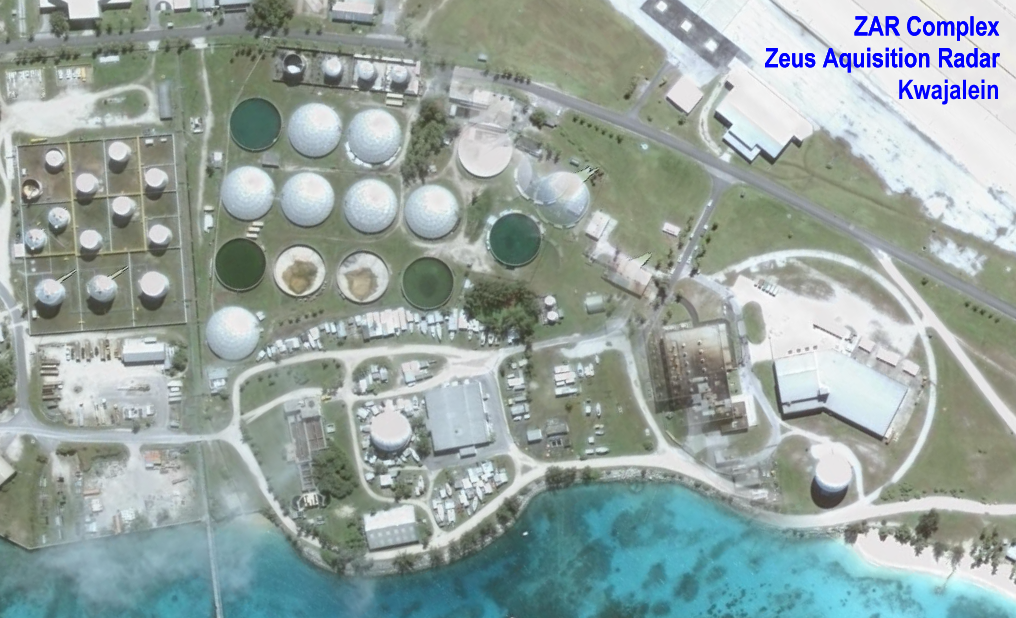

ZAR - Zeus Acquisition Radar Google Earth 2008
Photo Credit: Williamson Labs
ZAR, Zeus Acquisition Radar
The white hemisphere is the 85 foot in diameter ZAR receiving antenna.
The ZAR transmitting antenna is behind several hundred yards away.
..
Photo Credit: Williamson Labs

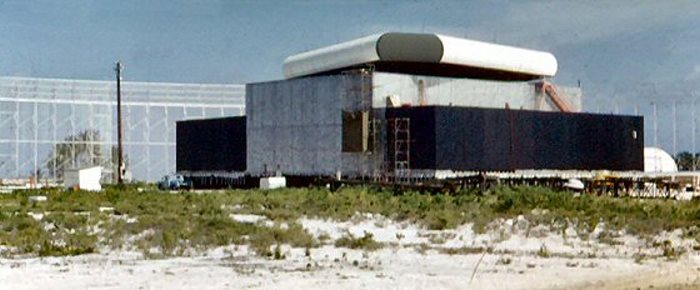

The ZAR Transmitting Antenna atop the Transmitter House
it is inside a 90 feet high circular beam forming stainless steel fence.

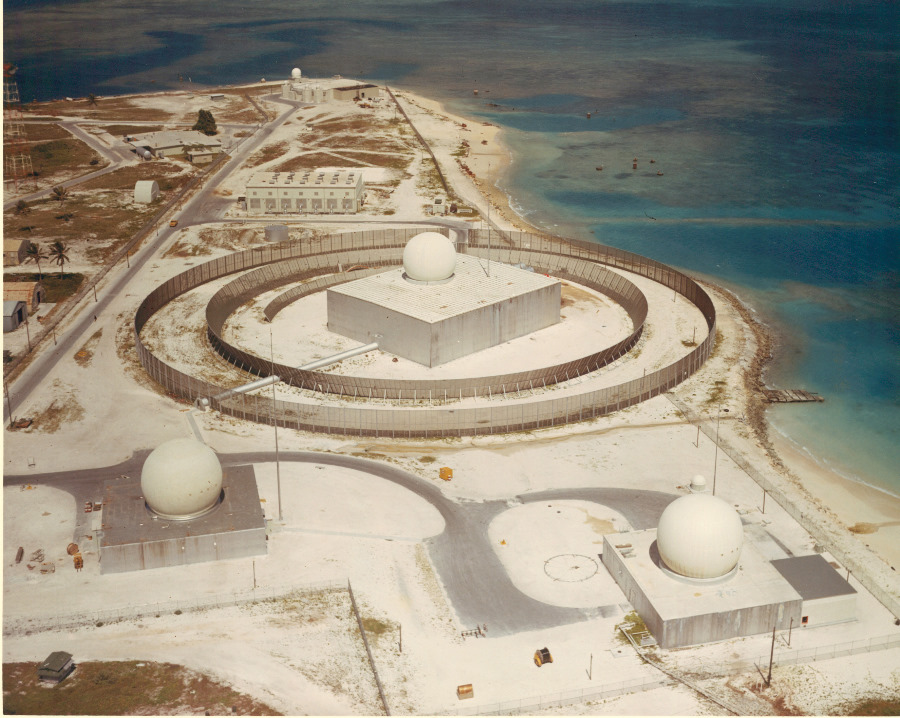

Zeus Acquisition Radar and smaller Target Tract Radars Kwajalein Island, Republic of the Marshall Islands
..
Photo Credit: SMDC/ARSTRAT
..

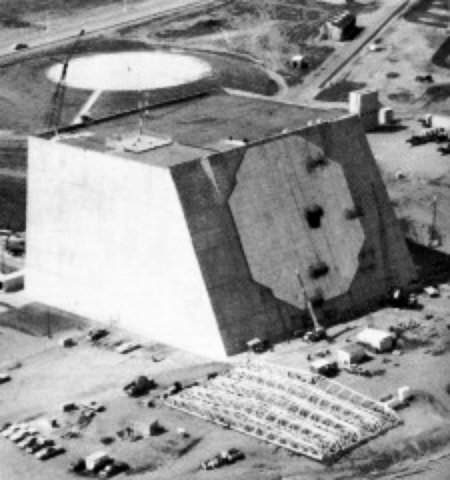

 PAR - Phased Array RADAR
..
 PAR - Phased Array Radar
..

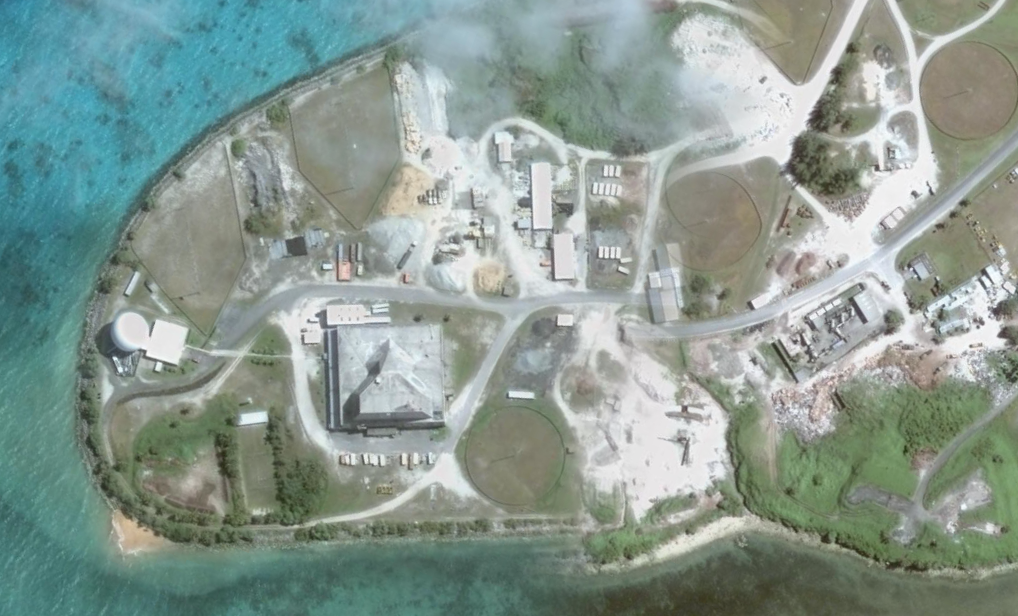

PAR - Phased Array ?? Google Earth 2008
Photo Credit: Williamson Labs

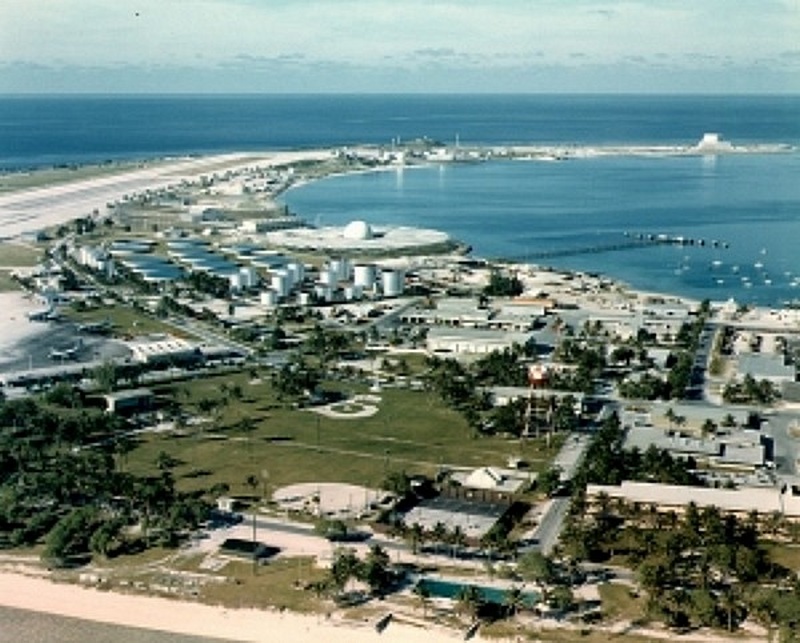

View of the Technical Area & "downtown" Kwaj
Other Installations
..
Photo Credit: Williamson Labs

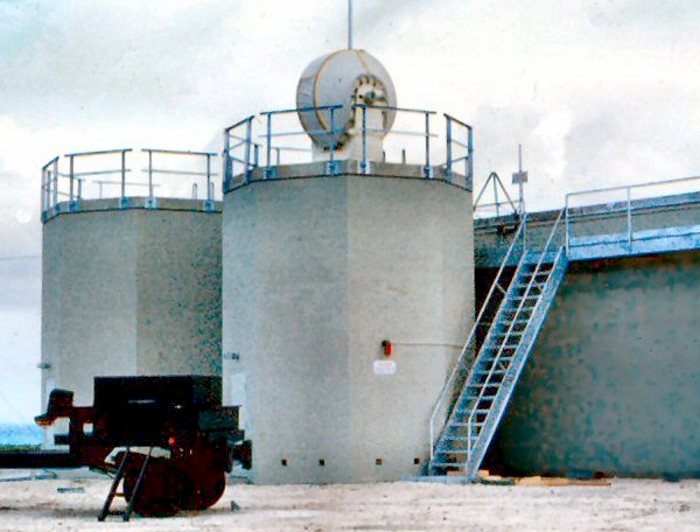

MTR, Missile Tracking Radar
Guides Antimissile on its way to the Target
..
Photo Credit: Williamson Labs

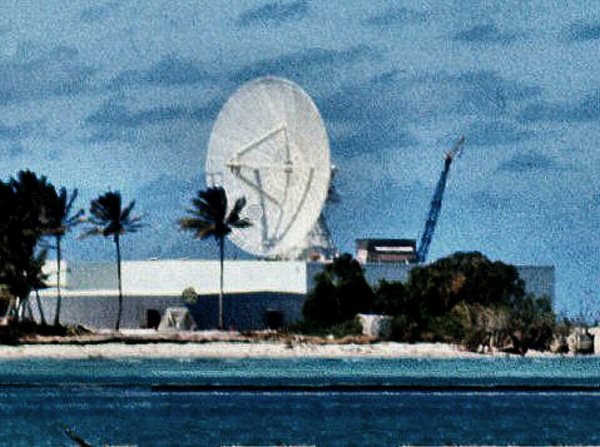

MIT's Tradex Antenna on Roi Namur
..
Photo Credit: MIT
MIT's Tradex Antenna on Roi Namur
MIT Lincoln Laboratory, Roi-Namur
Reagan Test Site, Kwajalein Atoll, Marshall Islands

Lincoln Laboratory serves as the scientific advisor to the Reagan Test Site at the U.S. Army Kwajalein Atoll installation located about 2,500 miles WSW of Hawaii. Twenty staff members, accompanied by their families, work at this site, serving two- to three-year tours of duty. The site’s radars and optical and telemetry sensors support ballistic missile defense testing and space surveillance. The radar systems provide test facilities for radar technology development and for the development of ballistic missile defense techniques. The Laboratory also supports upgrades to the command-and-control infrastructure of the range to include applications of real-time discrimination and decision aids developed as a result of research at the Laboratory. - SOURCE - MIT
