IO's Interaction with Jupiter's Magnetosphere

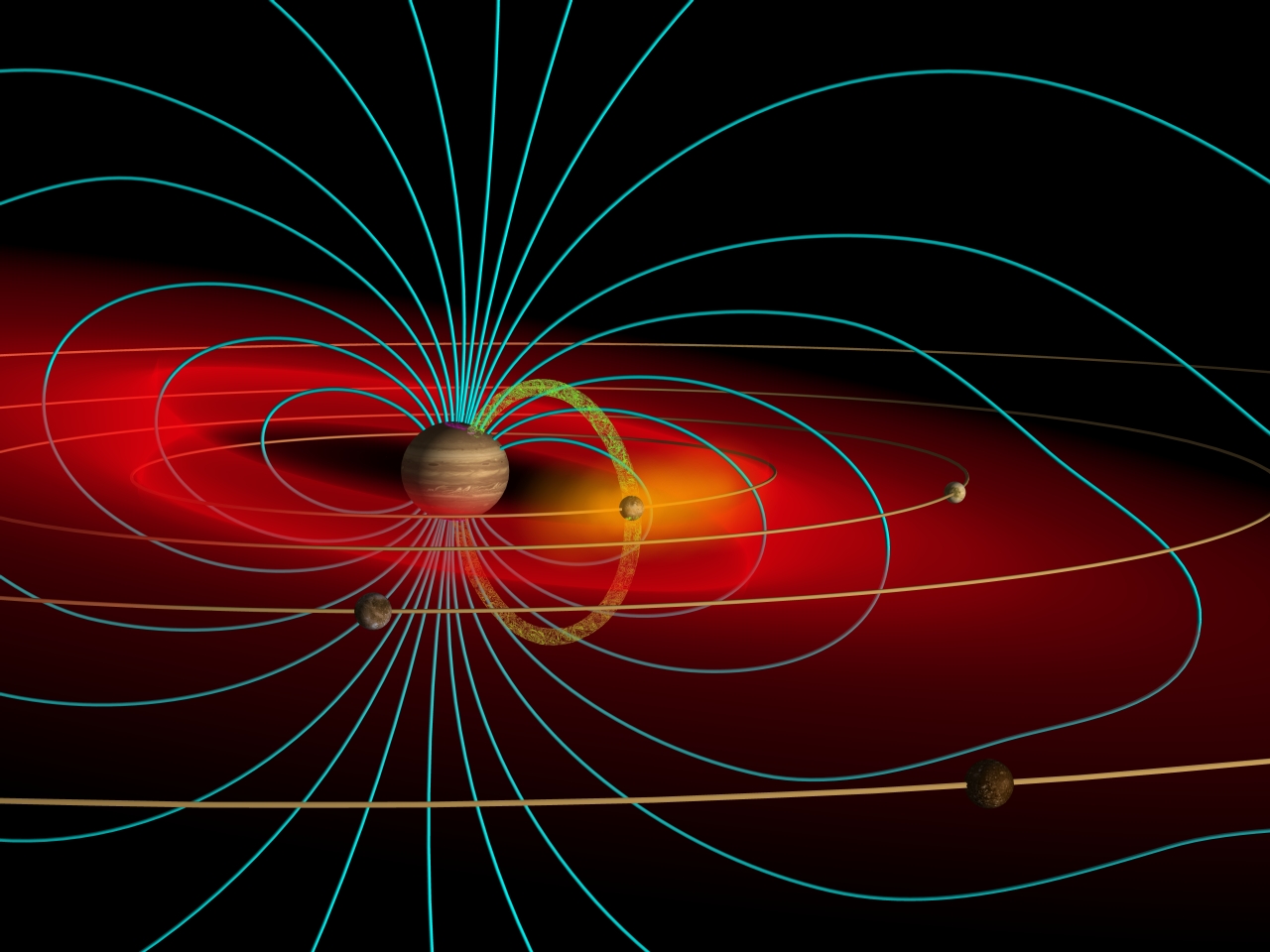

Schematic of the Jovian magnetosphere showing the Io Plasma Torus (in red), the Neutral Sodium immediately surrounding Io (in yellow), the Io flux tube (in green), and magnetic field lines (in blue). Graphic created by John Spencer. 25 May 2007

In tracing the following Reference...

Update Note From A.N.D Nov. 1997: A stream of ionized hydrogen, oxygen, nitrogen, etc. is being directed to Jupiter from the volcanic areas of Io through a one million amperes flux tube. It is affecting the character of Jupiter's magnetic process and intensifying it's plasma genesis.{Z.I.Vselennaya "Earth and Universe" N3, 1997 plo-9 by NASA data} - Millenium Group
IO's Interaction with Jupiter's Magnetosphere

Io plays a significant role in shaping the Jovian magnetic field. The magnetosphere of Jupiter sweeps up gases and dust from Io's thin atmosphere at a rate of 1 tonne per second. This material is mostly composed of ionized and atomic sulfur, oxygen and chlorine; atomic sodium and potassium; molecular sulfur dioxide and sulfur; and sodium chloride dust. These materials ultimately have their origin from Io's volcanic activity, but the material that escapes to Jupiter's magnetic field and into interplanetary space comes directly from Io's atmosphere. These materials, depending on their ionized state and composition, ultimately end up in various neutral (non-ionized) clouds and radiation belts in Jupiter's magnetosphere and, in some cases, are eventually ejected from the Jovian system.

Surrounding Io (up to a distance of 6 Io radii from the moon's surface) is a cloud of neutral sulfur, oxygen, sodium, and potassium atoms. These particles originate in Io's upper atmosphere but are excited from collisions with ions in the plasma torus (discussed below) and other processes into filling Io's Hill sphere, which is the region where the moon's gravity is predominant over Jupiter. Some of this material escapes Io's gravitational pull and goes into orbit around Jupiter. Over a 20-hour period, these particles spread out from Io to form a banana-shaped, neutral cloud that can reach as far as 6 Jovian radii from Io, either inside Io's orbit and ahead of the satellite or outside Io's orbit and behind the satellite. The collisional process that excites these particles also occasionally provides sodium ions in the plasma torus with an electron, removing those new "fast" neutrals from the torus. However, these particles still retain their velocity (70 km/s, compared to the 17 km/s orbital velocity at Io), leading these particles to be ejected in jets leading away from Io.

Io orbits within a belt of intense radiation known as the Io plasma torus. The plasma in this doughnut-shaped ring of ionized sulfur, oxygen, sodium, and chlorine originates when neutral atoms in the "cloud" surrounding Io are ionized and carried along by the Jovian magnetosphere. Unlike the particles in the neutral cloud, these particles co-rotate with Jupiter's magnetosphere, revolving around Jupiter at 74 km/s. Like the rest of Jupiter's magnetic field, the plasma torus is tilted with respect to Jupiter's equator (and Io's orbital plane), meaning Io is at times below and at other times above the core of the plasma torus. As noted above, these ions' higher velocity and energy levels are partly responsible for the removal of neutral atoms and molecules from Io's atmosphere and more extended neutral cloud. The torus is composed of three sections: an outer, "warm" torus that resides just outside Io's orbit; a vertically extended region known as the "ribbon", composed of the neutral source region and cooling plasma, located at around Io's distance from Jupiter; and an inner, "cold" torus, composed of particles that are slowly spiraling in toward Jupiter. After residing an average of 40 days in the torus, particles in the "warm" torus escape and are partially responsible for Jupiter's unusually large magnetosphere, their outward pressure inflating it from within.Particles from Io, detected as variations in magnetospheric plasma, have been detected far into the long magnetotail by New Horizons. To study similar variations within the plasma torus, researchers measure the ultraviolet-wavelength light it emits. While such variations have not been definitively linked to variations in Io's volcanic activity (the ultimate source for material in the plasma torus), this link has been established in the neutral sodium cloud.

During an encounter with Jupiter in 1992, the Ulysses spacecraft detected a stream of dust-sized particles being ejected from the Jupiter system. The dust in these discrete streams travel away from Jupiter at speeds upwards of several hundred kilometres per second, have an average size of 10 μm, and consist primarily of sodium chloride. Dust measurements by Galileo showed that these dust streams originate from Io, but the exact mechanism for how these form, whether from Io's volcanic activity or material removed from the surface, is unknown.

Jupiter's magnetic field lines, which Io crosses, couples Io's atmosphere and neutral cloud to Jupiter's polar upper atmosphere through the generation of an electric current known as the Io flux tube.[50] This current produces an auroral glow in Jupiter's polar regions known as the Io footprint, as well as aurorae in Io's atmosphere. Particles from this auroral interaction act to darken the Jovian polar regions at visible wavelengths. The location of Io and its auroral footprint with respect to the Earth and Jupiter has a strong influence on Jovian radio emissions from our vantage point: when Io is visible, radio signals from Jupiter increase considerably. The Juno mission, planned for the next decade, should help to shed light on these processes. The Jovian magnetic field lines that do get past Io's ionosphere also induce an electric current, which in turn creates an induced magnetic field, within Io's interior. Io's induced magnetic field is thought to be generated within a partially molten, silicate magma ocean 50 kilometers beneath the moon's surface. Similar induced fields were found at the other Galilean satellites by Galileo, generated within liquid water oceans in the interiors of those moons.


  • John Spencer's Astronomical Visualizations - Spencer, J.
  • Io's neutral clouds, plasma torus, and magnetospheric interactions - Schneider, N. M.; Bagenal, F. (2007) - In Lopes, R. M. C.; and Spencer, J. R. - "Io after Galileo" - Springer-Praxis. pp. 265–286 ISBN3-540-34681-3 - (Abstract only)
  • Composition of jovian dust stream particles - Postberg, F.; et al. (2006) - Icarus 183: 122–134 doi:10.1016/j.icarus.2006.02.001 - (Abstract only)
  • Galileo's close-up view of Io sodium jet - Burger, M. H.; et al. (1999) - Geophys. Res. Let. 26 (22): 3333–3336 doi:10.1029/1999GL003654 - (Abstract only)
  • A nebula of gases from Io surrounding Jupiter - Krimigis, S. M.; et al. (2002). "". Nature 415 (6875): 994–996 PMID11875559 - (Abstract only) doi:10.1038/415994a - (Abstract only)
  • Io's volcanic control of Jupiter's extended neutral clouds - Medillo, M.; et al. (2004) - Icarus 170: 430–442 doi:10.1016/j.icarus.2004.03.009 - (Abstract only)
  • Discovery of Jovian dust streams and interstellar grains by the ULYSSES spacecraft - Grün, E.; et al. (1993) Nature 362: 428–430 doi:10.1038/362428a0 - (Abstract only)
  • Solar Wind Magnetic Field Bending of Jovian Dust Trajectories - Zook, H. A.; et al. (1996). "". Science 274 (5292): 1501–1503 PMID8929405 - (Abstract only) doi:10.1126/science.274.5292.1501 - (Abstract only)
  • Dust Measurements During Galileo's Approach to Jupiter and Io Encounter - Grün, E.; et al. (1996). "". Science 274: 399–401. doi:10.1126/science.274.5286.399 - (Abstract only)
  • Magnetics Point to Magma 'Ocean' at Io - Kerr, R. A. (2010). "". Science 327 (5964): 408–409. doi:10.1126/science.327.5964.408-b- (Abstract only) - PMID20093451- (Abstract only)
